Steel Swivel Snap hook with load indicator (ANSI)

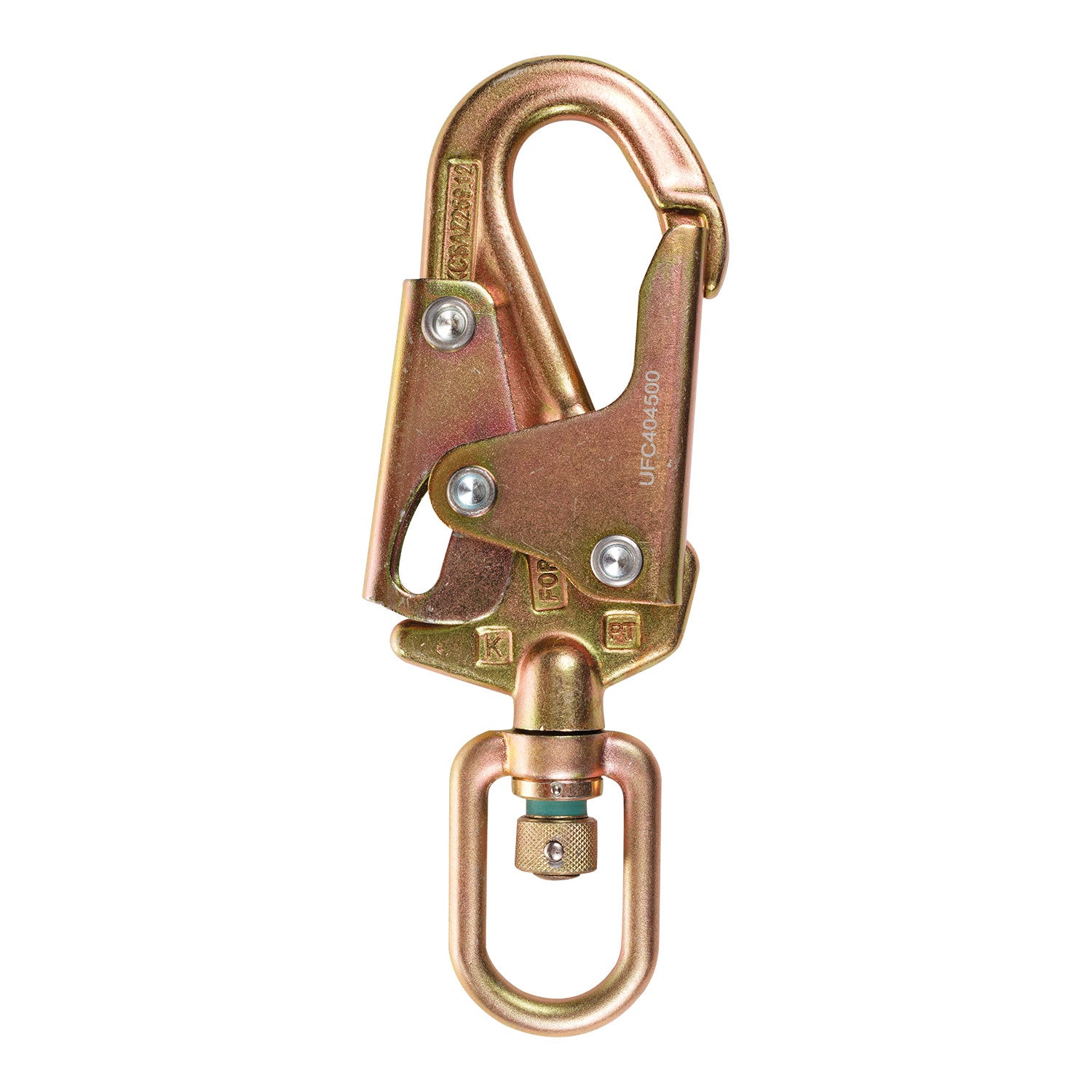

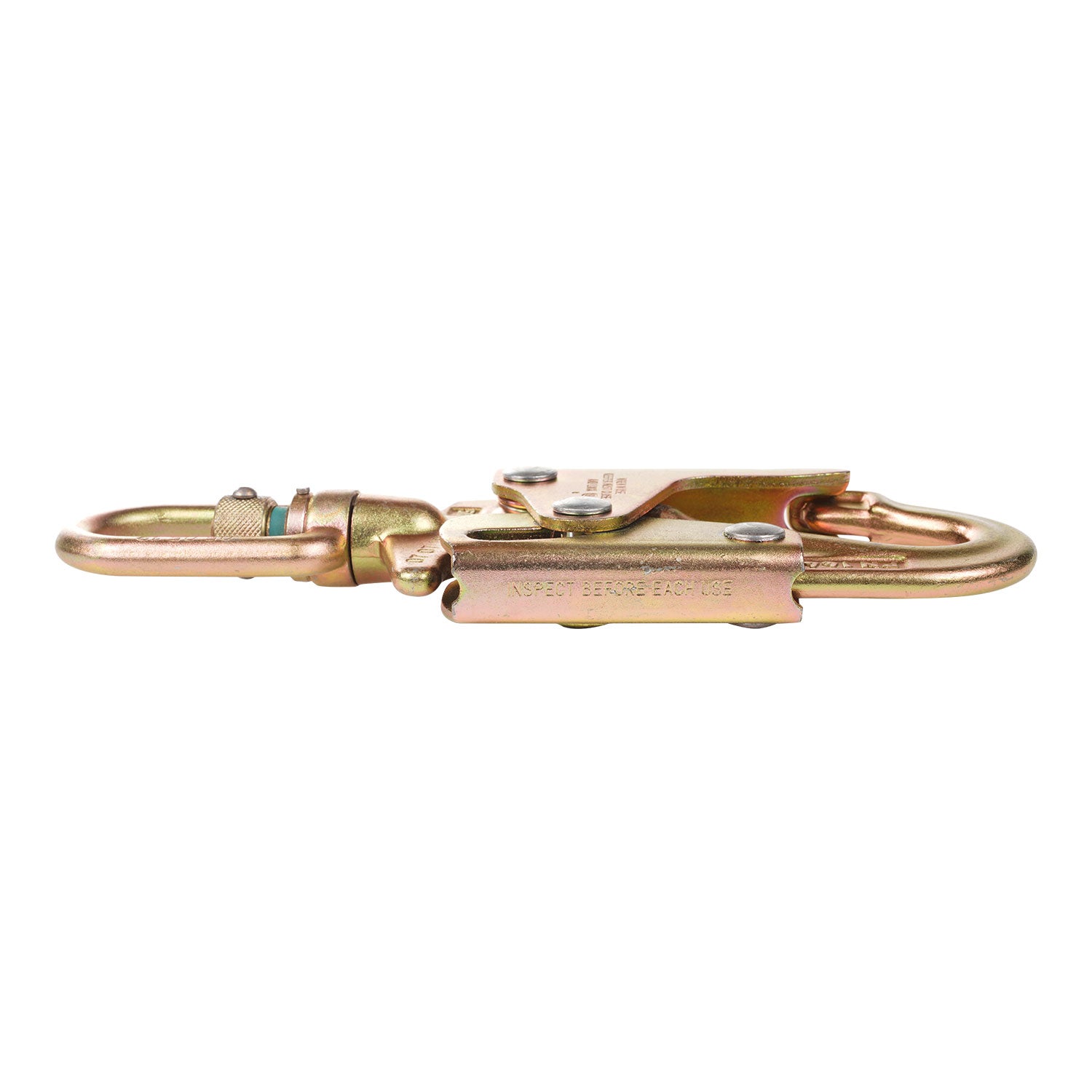

KStrong® Steel Swivel Snap hook with load indicator (ANSI)
Product Code: UFC404500
The KStrong® Auto-Locking Steel Snap Hook is engineered for ultimate safety and durability. This snap hook features a 0.79” (20mm) gate opening and a swivel ring as the captive eye, allowing for enhanced flexibility and movement. It is designed to automatically close and lock, providing a secure connection. A unique load indicator signals when the hook has arrested a fall, ensuring maximum safety. Made from forged alloy steel and finished with galvanized golden yellow or silver passivation, this snap hook is built to withstand rigorous use and harsh environments.
Feature |
Specification |
|---|---|
| Product Name | KStrong® Auto-Locking Steel Snap Hook with Load Indicator |
| Design | Gate opening 0.79” (20mm); Auto-closing and auto-locking type; Swivel ring as the captive eye; Load indicator to indicate fall arrest |
| Material | Alloy Steel; Forged |
| Finish | Galvanized with Golden Yellow / Silver passivation |
| Minimum Breaking Strength | 5000 lbs. (2268kg) |
| Gate Face Strength | 3600 lbs. (1633kg) |
| Gate Side Strength | 3600 lbs. (1633kg); Minor Axis: 3600 lbs. (1633kg) |
| Weight | 1.13 lbs. ± 0.02 lbs. (513 gm. ± 10 gm) |
| Relevant Standards | Meets or Exceeds ANSI Z359.12-2009 & CSA Z259.12 |
