Stamped steel snap hook
KStrong® Snap Hook, Stamped (ANSI)
Product Code: UFC404150

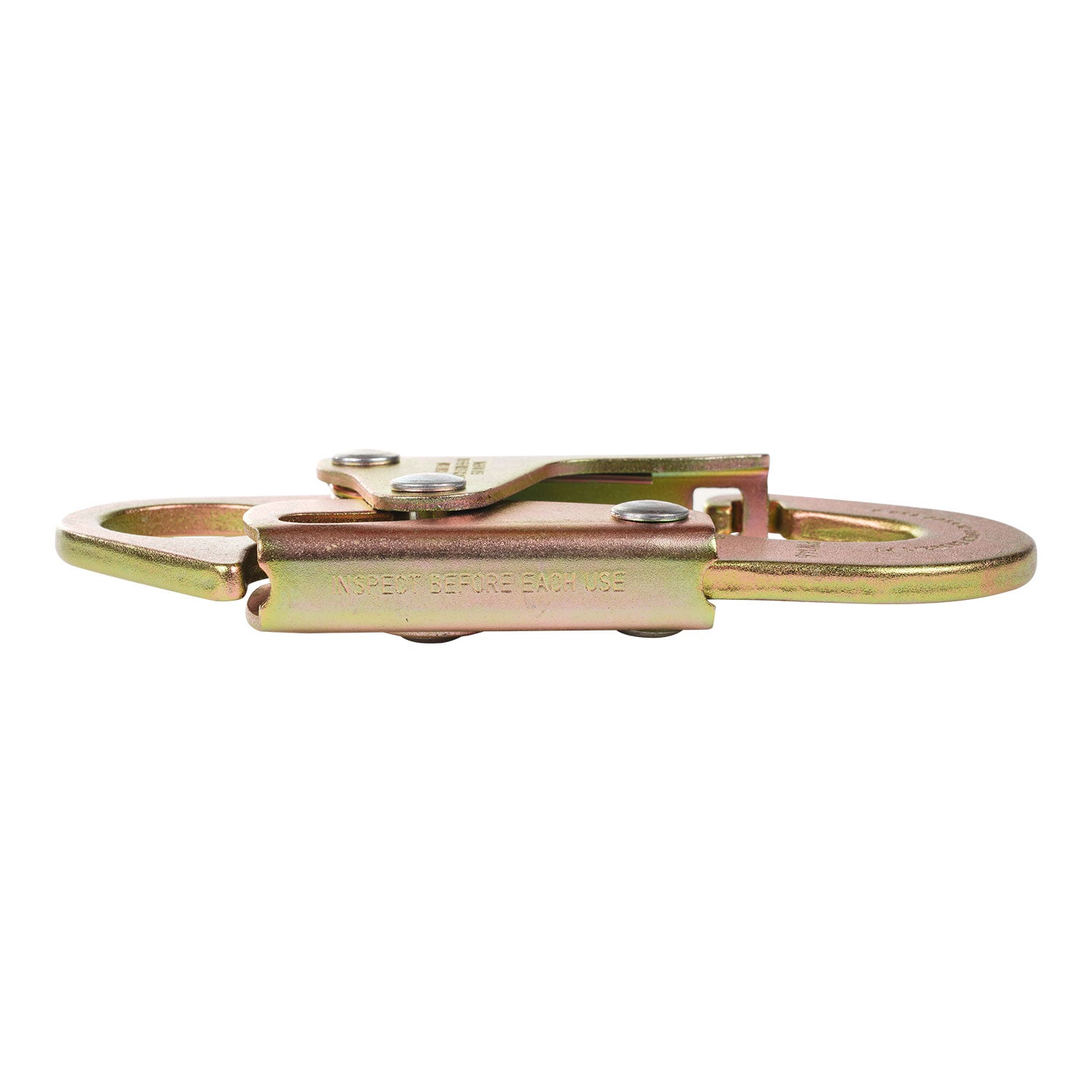

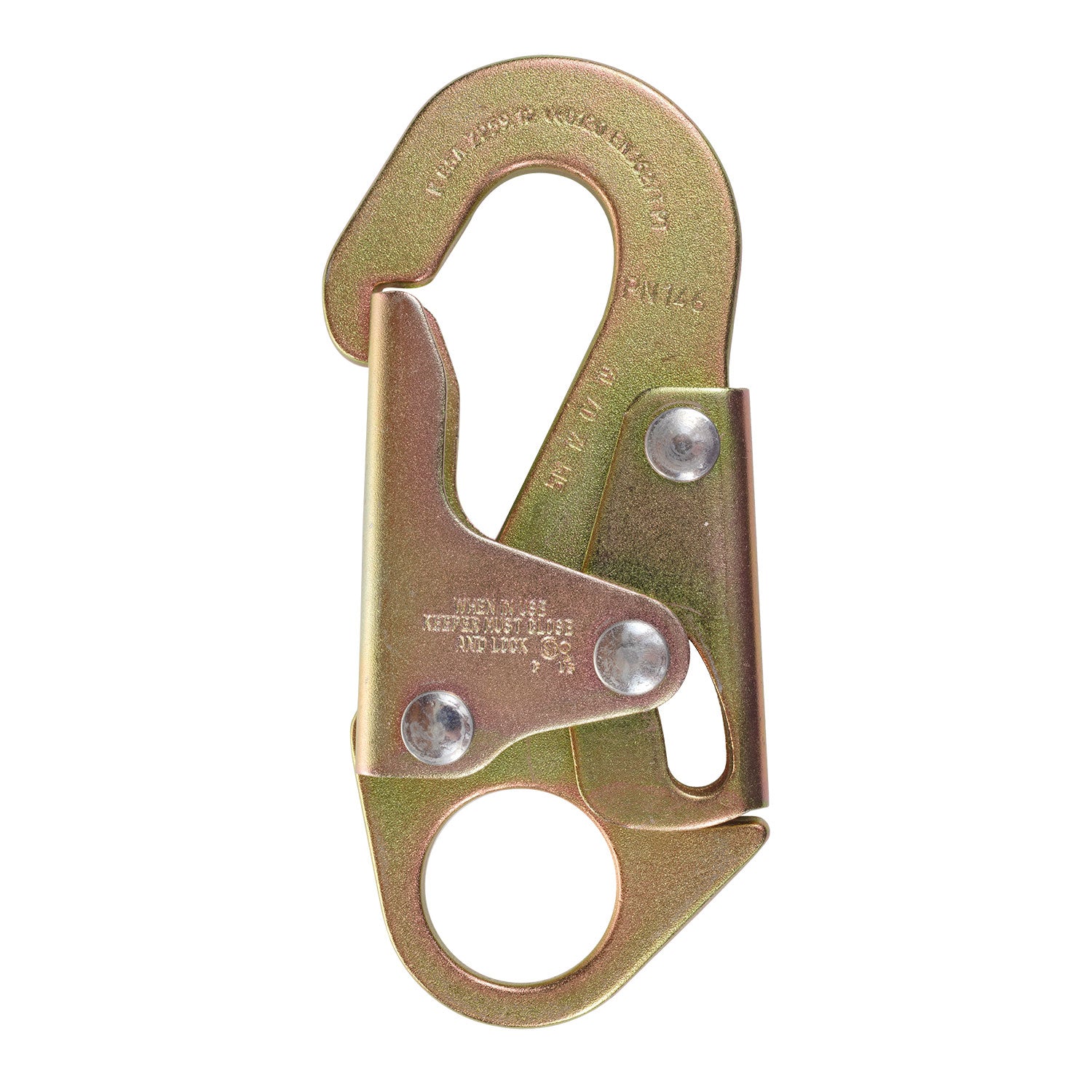

The KStrong® Stamped Steel Snap Hook is a reliable and robust connector designed for various safety applications. Featuring a 0.79” (20mm) gate opening, this snap hook is stamped out of high-strength alloy steel and is equipped with auto-closing and auto-locking mechanisms for enhanced security. The locking system operates through spring-operated attachments, ensuring a secure connection at all times. With a galvanized finish available in golden yellow or silver passivation, this snap hook offers both durability and corrosion resistance.
Feature |
Specification |
|---|---|
| Product Name | KStrong® Stamped Steel Snap Hook |
| Design | Gate opening 0.79” (20mm); Auto-closing and auto-locking type; Locking by spring operated attachments |
| Material | Alloy Steel |
| Finish | Galvanized with Golden Yellow / Silver passivation |
| Minimum Breaking Strength | 5000 lbs. (2268kg) |
| Gate Face Strength | 3600 lbs. (1633kg) |
| Gate Side Strength | 3600 lbs. (1633kg); Minor Axis: 3600 lbs. (1633kg) |
| Weight | 0.83 lbs. ± 0.02 lbs. (376 gm. ± 10 gm) |
| Relevant Standards | Meets or Exceeds ANSI Z359.12-2009 & CSA Z259.12 |
