ISS
Permanent Use Stainless Steel Roof Anchor with D-Rings (ANSI)
KStrong® Permanent Use Stainless Steel Roof Anchor with D-Rings (ANSI)
Product Code: UFA30020

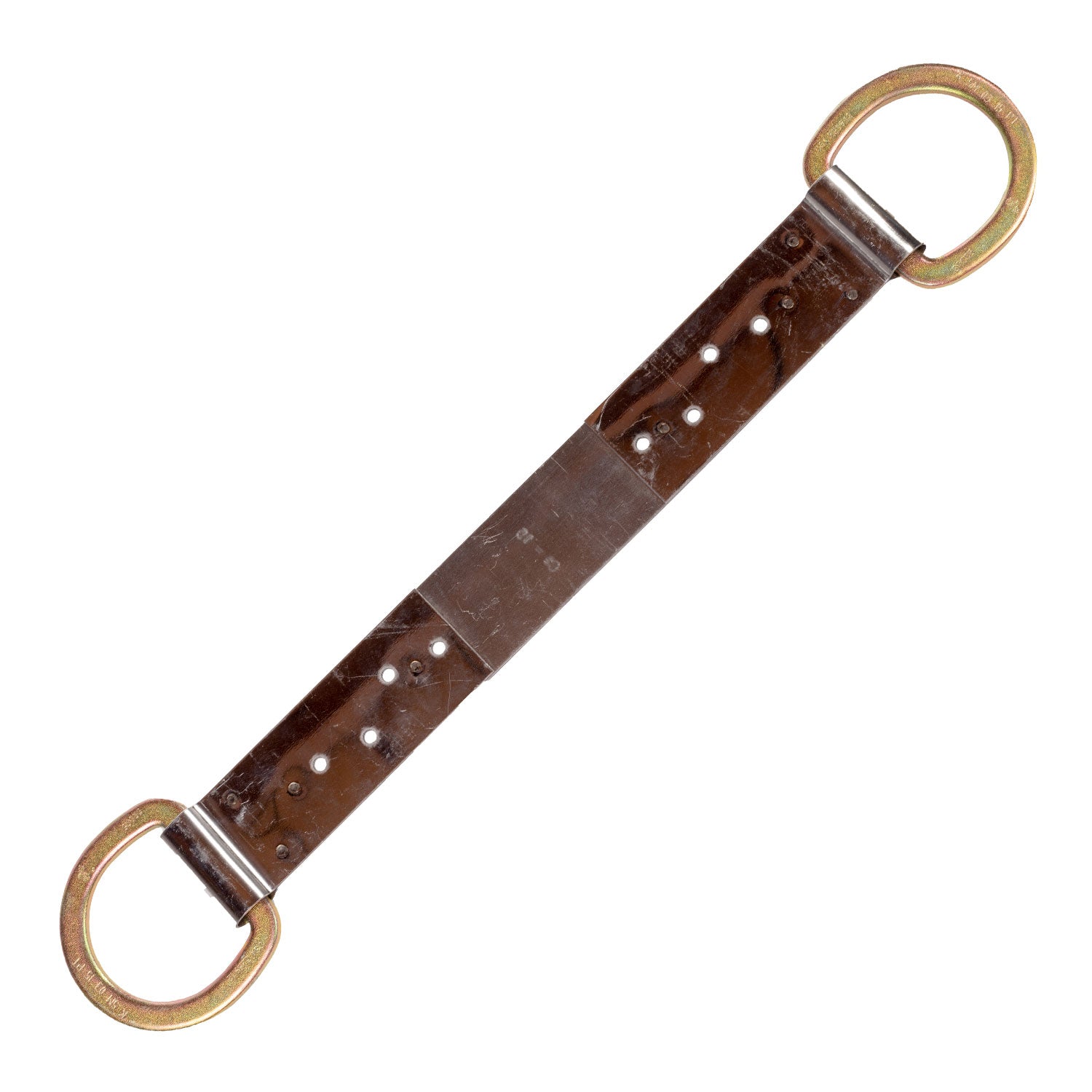

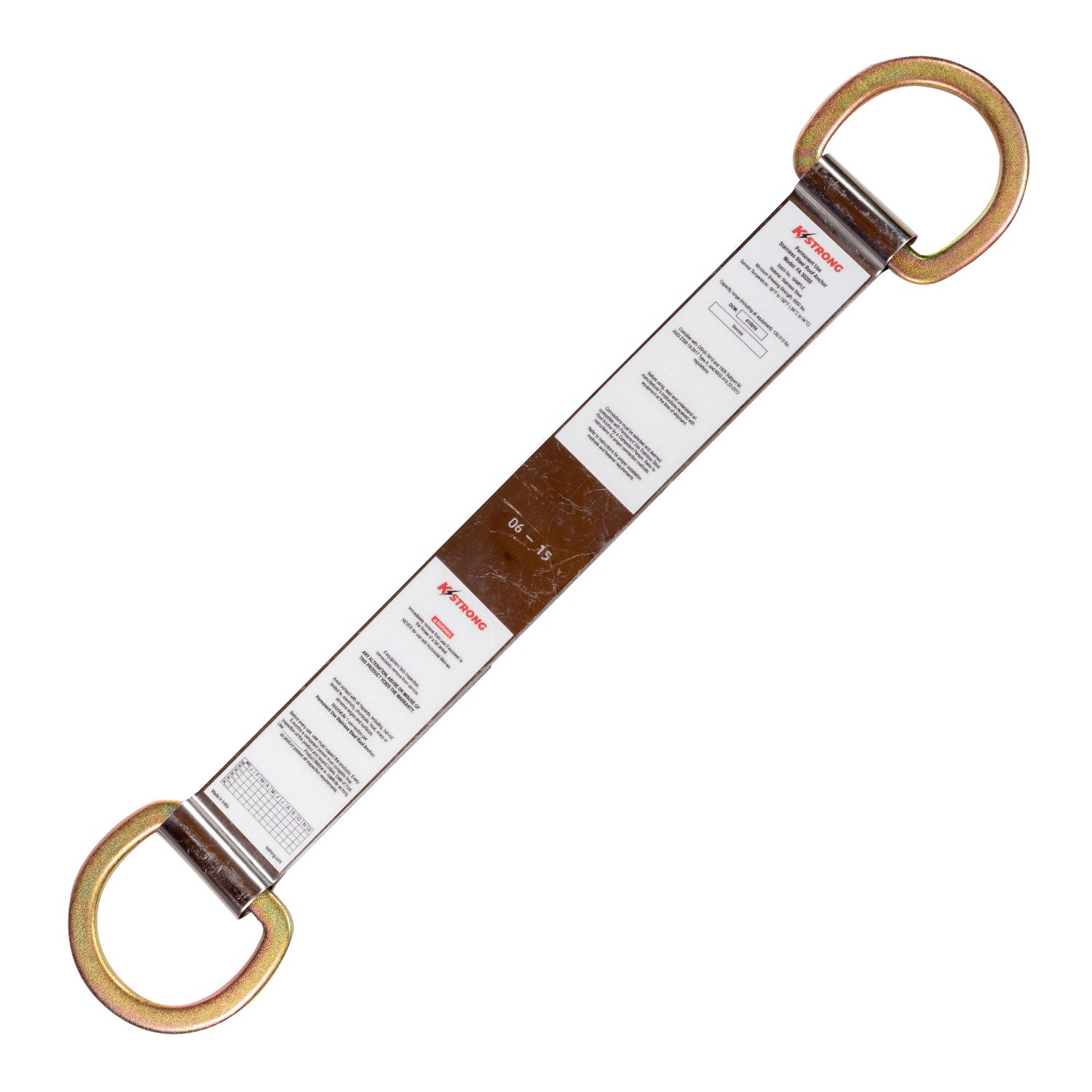

The KStrong® Permanent Use Stainless Steel Roof Anchor with D-Rings is designed for secure and permanent anchorage on wooden beams used in roofing. This device features a stainless steel base plate with eight holes for easy installation using nails. The stamped D-rings at both ends provide safe anchorage points. The anchor is made from high-quality materials, ensuring durability and strength. It meets or exceeds ANSI Z359.18-2007 Type A and OSHA standards.
Feature |
Specification |
|---|---|
| Design | Permanent anchorage for wooden beams in roofing; 8-hole stainless steel base plate; stamped D-rings on both ends |
| Material | Base Plate: Stainless Steel; D-Ring: Medium Carbon Steel |
| Finish | Base Plate: Electro-polished; D-Ring: Zinc Plated (Yellow/Silver) |
| Minimum Breaking Strength | 5000 lbs (2268 kg) |
| Weight | 0.83 lbs. ± 0.02 lbs. (376 gm ± 10 gm) |
| Relevant Standards | Meets or Exceeds ANSI Z359.18-2007 Type A & OSHA Compliant |
