Permanent Use Stainless Steel 17” Roof Anchor with 1 Forged D-ring (ANSI)

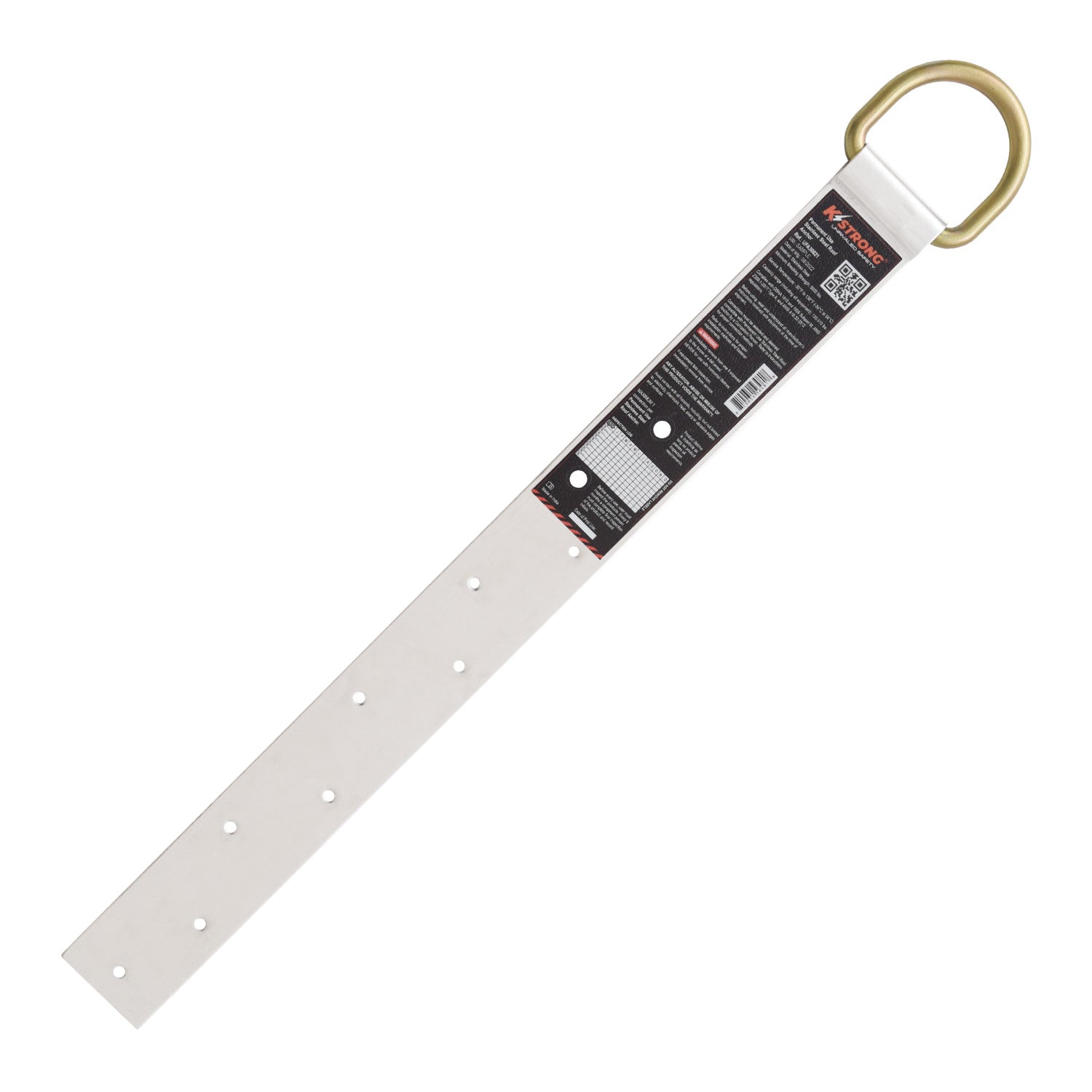

KStrong® Permanent Use Stainless Steel 17” Roof Anchor with 1 Forged D-ring (ANSI)
Product Code: UFA30021
The KStrong® Permanent Use Stainless Steel Roof Anchor with a single D-Ring is designed as an ideal anchorage device for securing on wooden beams used in roofing. It features a stainless steel base plate with ten holes for easy installation using nails. The stamped D-ring at one side ensures a safe anchorage point. Made from high-strength materials, this anchor is durable and reliable for permanent use. It meets or exceeds ANSI Z359.18-2017 standards.
Feature |
Specification |
|---|---|
| Design | Permanent anchorage for wooden beams in roofing; 10-hole stainless steel base plate; stamped D-ring on one side |
| Material | Base Plate: Stainless Steel; D-Ring: High strength alloy steel |
| Finish | Base Plate: Electro-polished/E Coated; D-Ring: Zinc Plated Golden Yellow/Silver Passivation |
| Minimum Breaking Strength | 5000 lbs. (2268 kg) |
| Opening of D-Ring | 1.7” |
| Weight | 0.79 lbs. ± 0.02 lbs. (358 gm ± 10 gm) |
| Relevant Standards | Meets or Exceeds ANSI Z359.18-2017 |
