Elite 5-Point Full Body Harness, Dorsal D-Ring, TB Legs (ANSI) with KStrong® 6 ft. Micron™ SRL with Snap Hook (ANSI) – Harness Connector Included
Size:S-M
KStrong Kapture Full Body Harness
Product Code: UFK20510

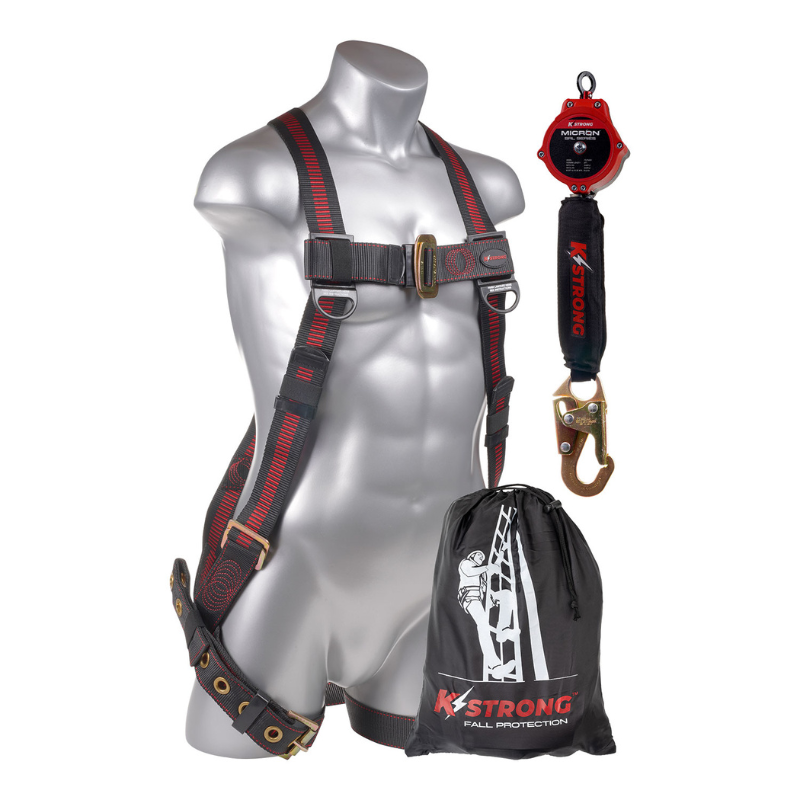

The KStrong® Kapture™ Elite 5-Point Full Body Harness with Dorsal D-Ring and Tongue Buckle Leg Closures, paired with the KStrong® 6 ft. Micron™ SRL with Snap Hook, offers comprehensive fall protection for various industrial applications. This combination ensures both safety and comfort, meeting or exceeding ANSI standards.

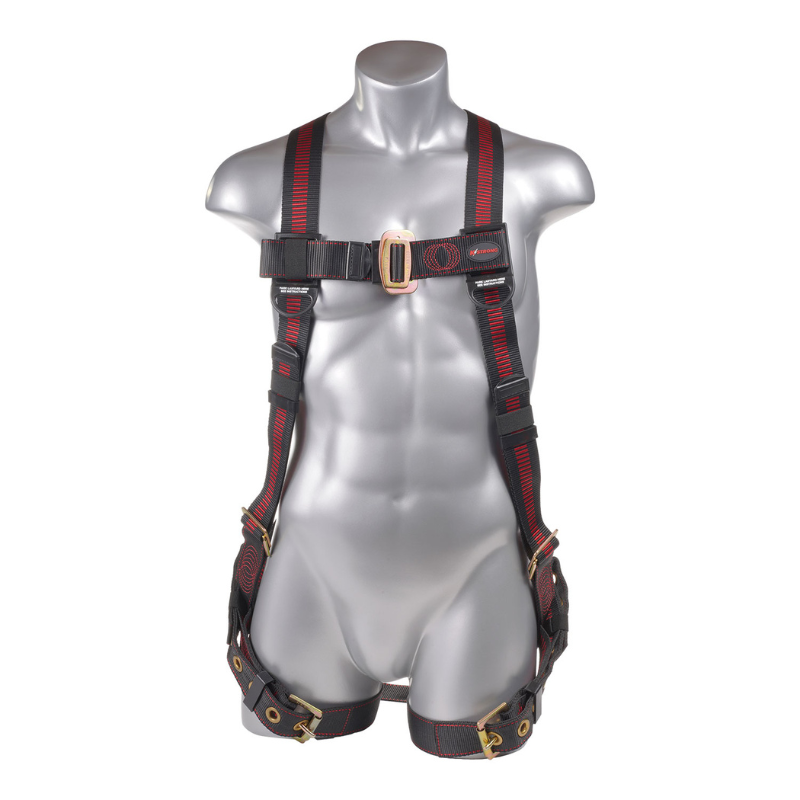

Harness – UFH10201G
Harness Specifications
Feature |
Description |
| Design | 5-Point Adjustable Full Body Harness with One (1) Dorsal D-Ring and Tongue Buckle Leg Closures (ANSI) |

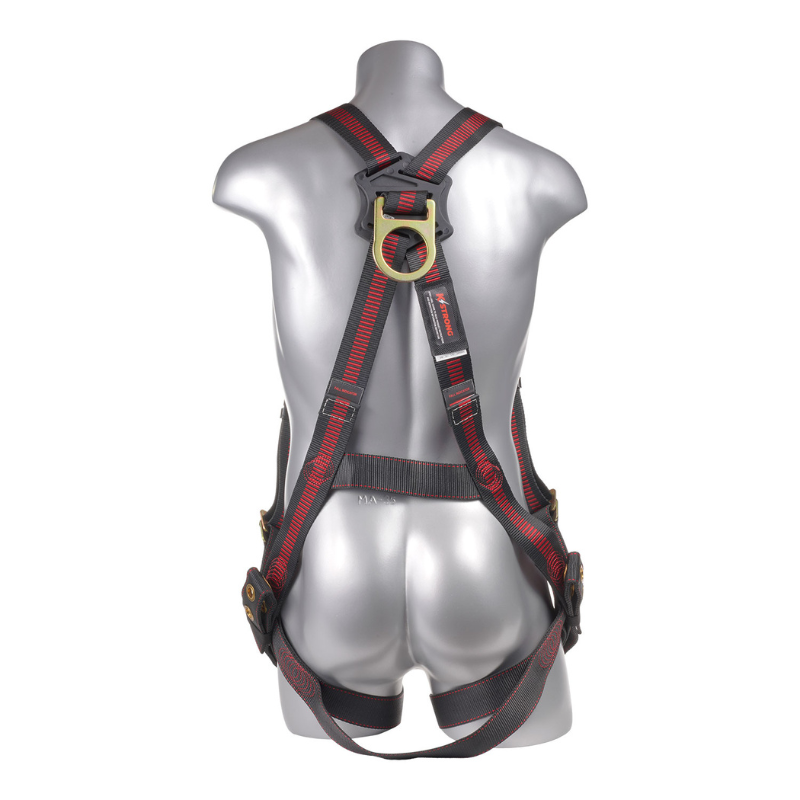

| Dorsal D-Ring | One dorsal attachment D-ring for fall arrest |
| Adjustability | Adjustable shoulder straps and adjustable tongue buckle leg straps |
| Webbing Material | Polyester |
| Webbing Width | 1.73 in. ± 0.04 in. (44mm ± 1mm) |
| Breaking Strength | 5000 lbs. |
| Stitching Thread Material | High-tenacity polyester |
| Metal Component Material | Alloy steel |
| Metal Finish | Silver or Golden Yellow Galvanized |
| Capacity Range | ANSI: 130 – 310 lbs.; OSHA: 420 lbs. |
| Relevant Standards | Meets or exceeds ANSI Z359.11-2014 |

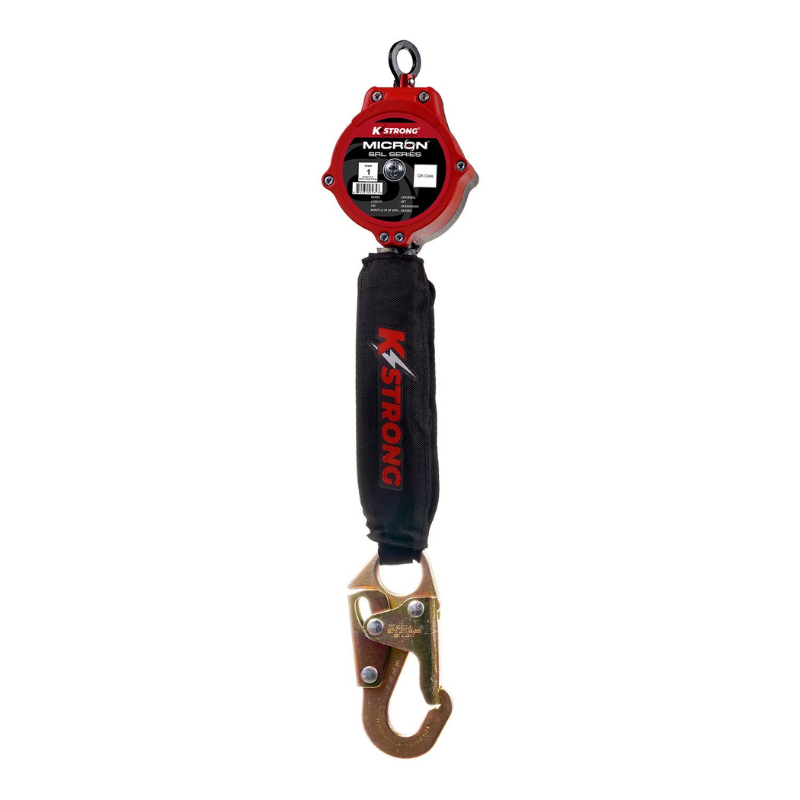

Self-Retracting Lifeline – UFS350002
Lanyard Specifications
Feature |
Description |
| Design | KStrong® 6 ft. Micron™ Lightweight SRL with one (1) snap hook at anchor end (ANSI). Includes one (1) quarter turn locking carabiner (UFC401101) |
| Physical Parameters | Lightest available SRL in its range/class, Robust & durable plastic casing, Dyneema Webbing with Energy absorber, Steel snap hook at attachment end |
| Length | 6 ft. |
| Webbing Material | Dyneema Webbing 13/16” (21mm) |
| Min. Breaking Strength | 4500 lbs. |
| Weight | 3.51 lbs. ± 0.22 lbs. (1592 gm ± 100 gm) |
| User Capacity | OSHA Working Load Capacity: 420 lbs., ANSI Working Load Capacity: 310 lbs. |
| Relevant Standards | Meets or exceeds ANSI Z359.14-2021 Class 1 |
This combination of the KStrong® Kapture™ Elite 5-Point Full Body Harness and the 6 ft. Micron™ SRL provides a lightweight, durable, and reliable fall protection system suitable for demanding work environments.
